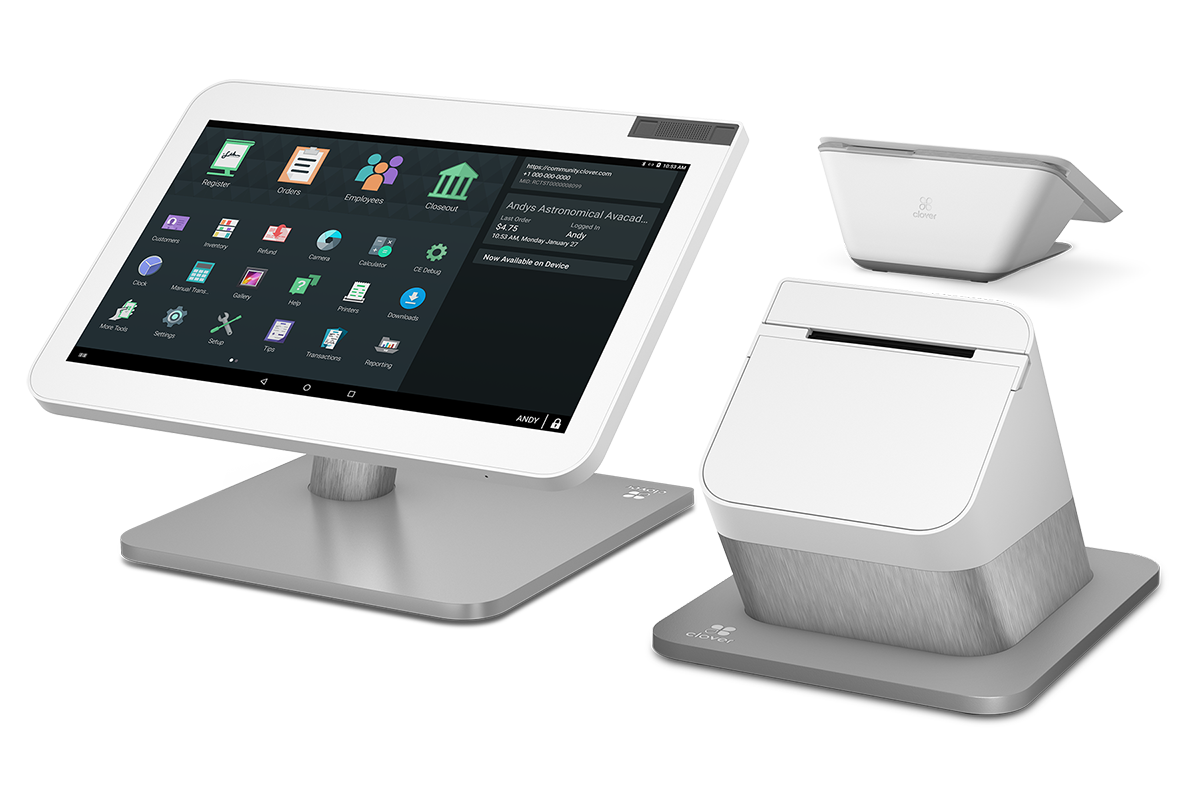

Clover Station Duo
Station Duo is a powerful point of sale system for quick service restaurants, retail stores, and service businesses–wherever customers line up fast.
Accept Payments Everywhere
You can accept payments at the counter or anywhere else.
Manage Inventory
Built-in camera and barcode scanner lets you scan items into your inventory instantly.
Clover Station Duo

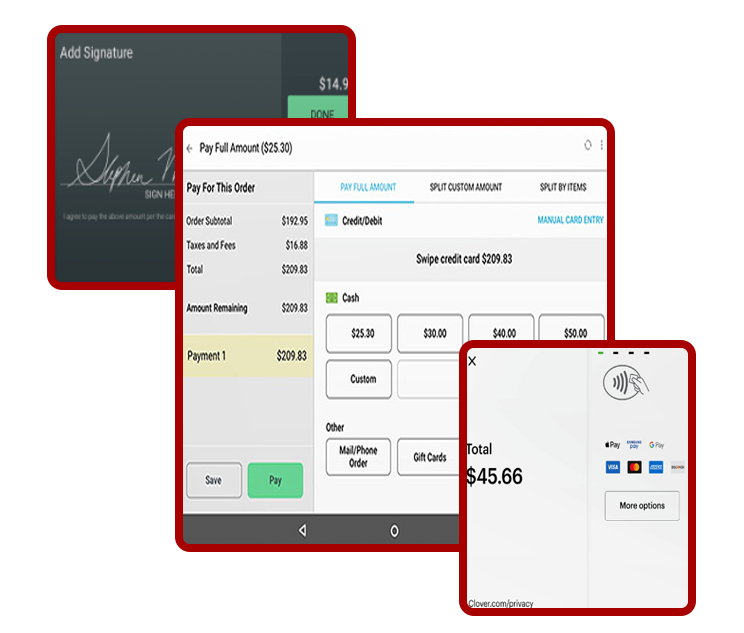

Fully-featured Payments
Tax, discounts, loyalty rewards, and gift cards are just a tap away
Keep your customer list in order
Manage your patron’s contact info as well as their marketing preferences.
Feature
Accept All Payment Types
Payments: Accepts chip, swipe, and contactless payments
Cash drawer: Optional add-on
All-in-one system
Screen: 8″ LCD color touch screen
Receipt printer: Built-in thermal dot receipt printer

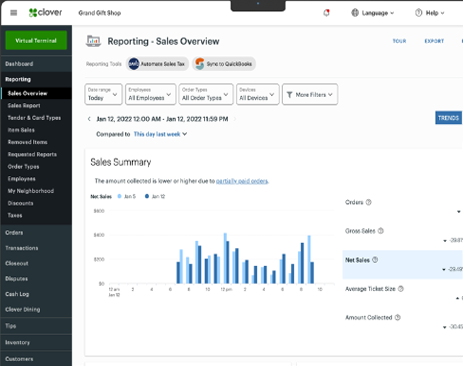

Clover for any Business Type
Clover is designed to be customized for every type of business. Clover has easy step-by-step instructions for three major business types

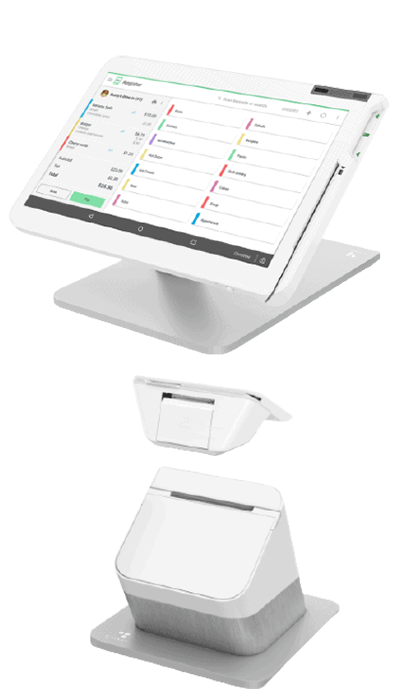

All-in-one System
The Best Clover Flex Features
1
Station Duo Display (merchant facing)
Station Duo includes a 14” high resolution merchant-facing screen that’s fixed in place.
2
Built-in camera and barcode scanner
Merchant-facing 5MP camera with Zebra scanning software.
3
Speaker and microphone.
4
Fingerprint login
Clover Station Duo offers fingerprint login for up to 50 employees per device. All fingerprint data is stored securely, on the device.
5
Power Button
Hold down for 10 seconds on first start-up.
6
Fixed Base
Small, square base. The Station Duo display (merchant facing) doesn’t swivel as it’s only for use by the merchant.
7
Standard Printer
Station Duo comes with our standard, high-speed receipt printer. Thermal line dot printing with paper out sensor. Maximum printing speed at 200mm/sec.
1
Station Duo Terminal (customer facing)
A 8.0″ HD Display. This is where all the payments take place. A dedicated customer facing display for improved order accuracy, customer engagement, loyalty program facilitation, and more.
2
Display
The display has strengthened glass, which includes anti-fingerprint and anti-microbial coating.
3
Powerful Processor
The Clover Station Duo Terminal (customer facing) houses a Qualcomm Snapdragon 660 Octa Core Processor, 1.8GHz 4 Cores and 2.2GHz 4 Cores. This state of the art processor provides increased transaction and app speeds.
4
Swipe Card (Magstripe)
Magnetic Swipe Reader, swipe to take payment.
5
Chip Card (EMV) Reader
Dip to take payment.
6
Built-in camera
5MP customer-facing camera.
7
Contactless NFC
Tap to take payment.
Specifications
- Clover hardened version of Android (AOSP) 10.0 (API Level 29, Q)
- Qualcomm® Snapdragon 660 octa-core processor (4 cores up to 1.8GHz and 4 cores up to 2.2GHz)
- Memory—2 GB RAM
- Storage—16 GB
- North America & EU (C043E)*—Ethernet, WiFi, and 4G/LTE
- Merchant-facing screen—14.0″ IPS FHD display
- Customer-facing screen—8.0″ IPS HD display
- Employee login method—Employee passcode
- Camera/scanning
- Dual cameras—5.0M pixels
- Supports 1D/2D with advanced Zebra scanning software
- Audio/microphone
- Internal dynamic speaker
- Separate speakers on both terminal and display
- Single microphone input
- 3.5 mm stereo audio jack located in the terminal
- Physical volume buttons on the customer facing device, and through the UI
- Accessibility features
- Volume control
- Voice assistant
- Stylus pen option
- Headphones connection ability
- Display—High contrast, font and brightness adjustment
- Sound detector (for microphone)
- Universal switch
- Tactile PIN entry option
- Accessories for purchase—Mini PIN shield, Mini PIN Entry Aid, cash drawer
Optional Accessories

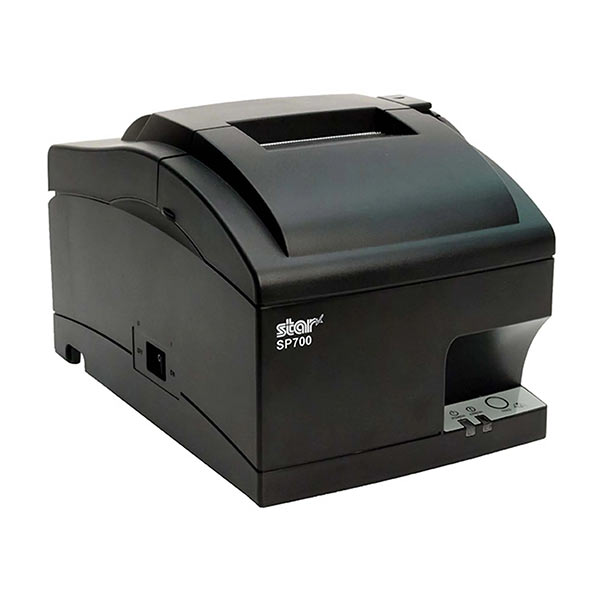

Kitchen Printer
Star Micronics SP742
Built to withstand the heat and humidity of the kitchen, this fast, two-color printer offers crisp, easy to read type for quick viewing. When you use it with Clover, you can even print orders in different languages (Excludes special characters). This is the only kitchen printer compatible with Clover. This printer connects with one ethernet cable and is compatible with all Clover devices connected to the same network.

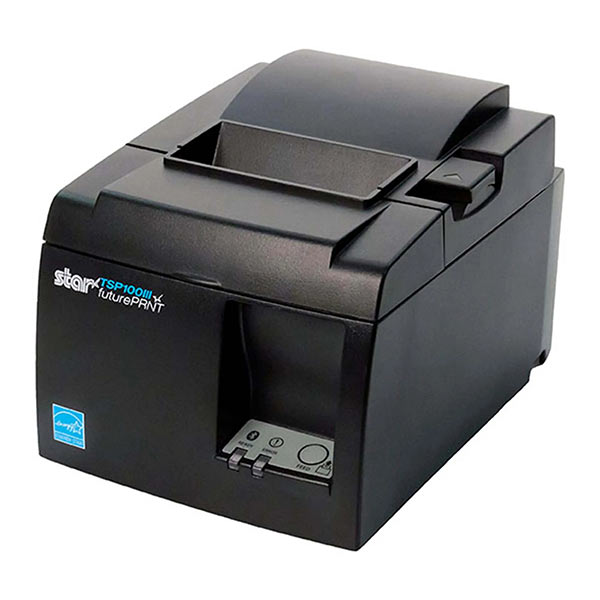

Order Printer
Star Micros TSP143III
Keep the bar area or any front of the house station connected and quietly printing out orders with the thermal Order Printer. This printer connects with one ethernet cable and is compatible with all Clover devices connected to the same network.

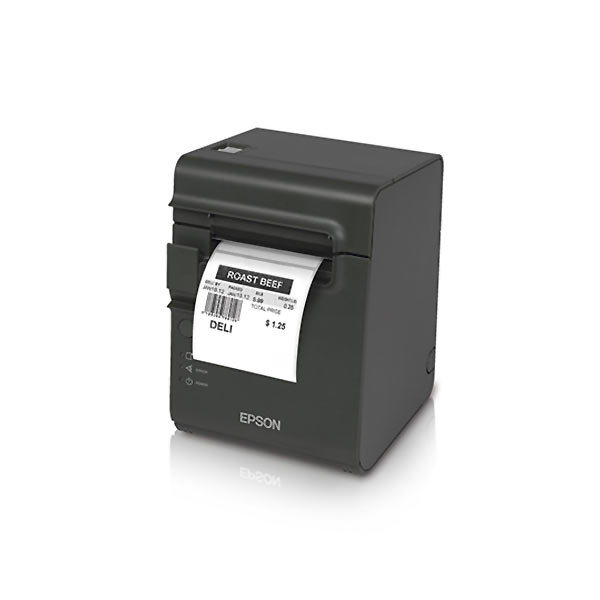

Label Printer
Epson TM – L90
Epson thermal sticker label printer improve merchants’ productivity and order accuracy by fast printing order/item details on 2 ¼” X 1 ¼” direct thermal sticky labels.

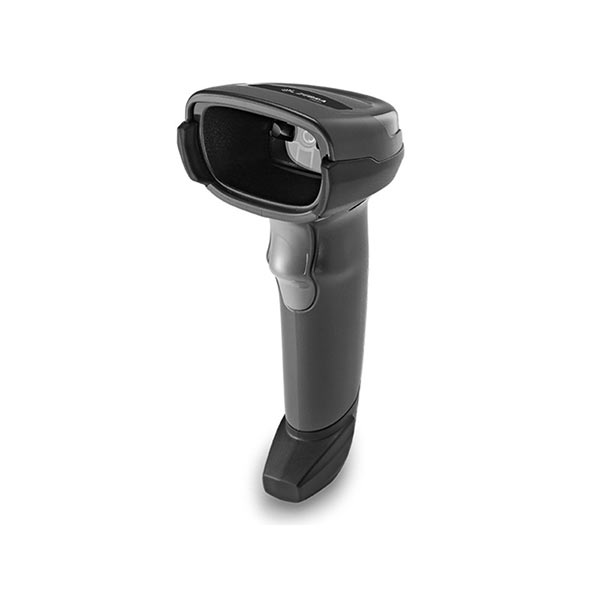

Hand-held Barcode Scanner
Zebra DS2208
Capture both 1D and 2D barcodes from paper labels, phone screens, as well as high-density (HD) barcodes used in speciality retail and electronic manufacturing. The stand enables automatic switching between handheld and hands-free modes. The Clover-customized version enables easy plug-and-play setup.

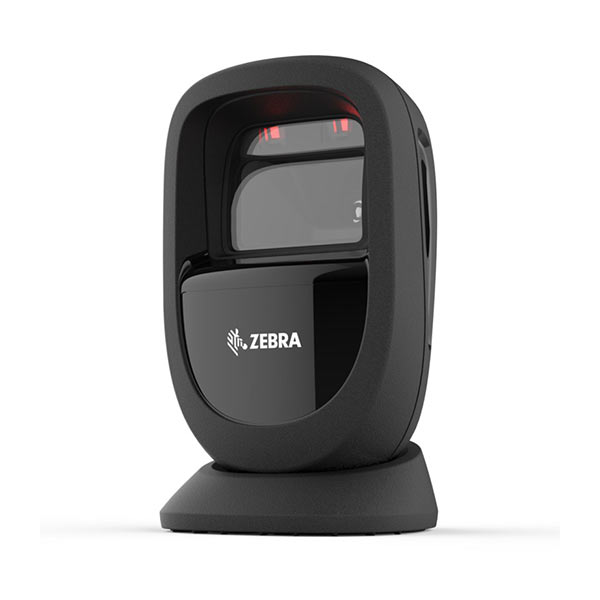

Hands-free Barcode Scanner
Zebra DS9308
This scanner has a sleeker design and a smaller footprint thanks to its integrated adjustable stand. Capture both 1D and 2D barcodes from paper labels, phone screens, as well as high-density (HD) barcodes used in specialty retail and electronic manufacturing. The Clover-customized version enables easy plug-and-play setup.

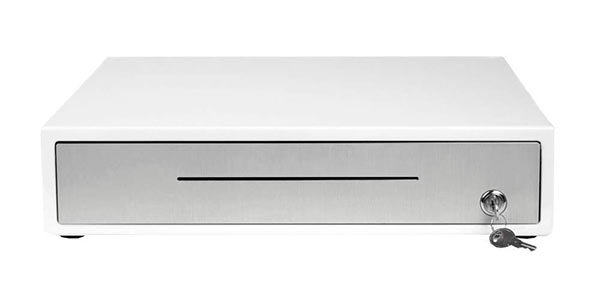

Cash Drawer
Cash Drawer
Each Clover Station Duo has the option to come with a matching cash drawer.

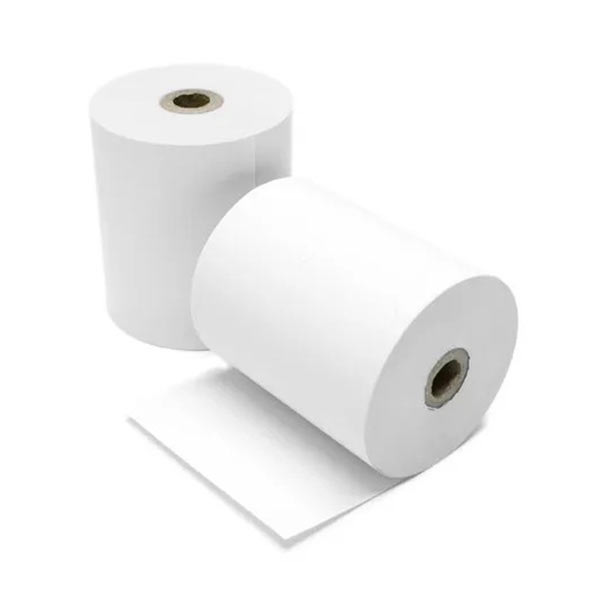

Printer Paper
Printer Paper
The Clover Station Printer takes 3 in x 150 ft thermal paper rolls.
The Star thermal printer as it uses the same paper as the Clover Station one (3 1/8in x 230ft thermal paper rolls).
We’re here to help
Talk to our Sales team
Get in touch with our sales team and we’ll help you find the right hardware setup for your business.
Get product support
Get product support for no additional fees. Visit Support Centre to access helpful tips, articles and videos or to contact a representative.
